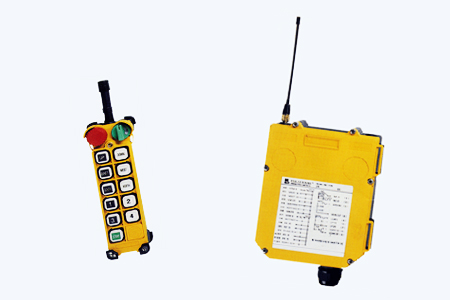

Taiwan TELECRANE 8 Double-speed Industrial remote control
Model: F24-8D
Transmitter (handheld)
Size: 18.6x6.1x5.1 cm
Weight: about 255 grams
Receiver
Size: 20x16.2x10.7 cm
Weight: 1220 g
8 function keys (two-stage button) mushroom head emergency stop + start + key + spare
Up to 19 control points
With battery voltage warning device, in low voltage own circuit.
Security Turn the key switch to prevent unauthorized use.
Nylon woven reinforced plastic casing to prevent fall and caused a strong impact
Damage.
Enhanced models equipped with two-stage button is sealed with a full integration of Double-speed keys, and last longer, feel better. Total stop buttons with a self-locking red "mushroom head" button, and further emphasized the overall safety factor.
Up / down, east / west, north / south can be set whether to suppress each other. Full Double-speed button for easy operation Double-speed body
Boot the computer is set to boot by Jian, acceleration, flick jump, ordinary functions.
1-2 Kin spare computer to be ordinary, interlock, flick jump, switches and other functions.
Control distance: up to 100 m
Security Code: 32 yuan (4.3 billion group)
Operating temperature: -35 鈩 to +80 鈩 (without regard to battery temperature)
Protection: IP65
Transmitter Power: DC 3V (two alkaline batteries can be used one month)
Receiver Power Supply: AC 380V/220V/48V optional (50/60HZ),
Or DC 12V/24V
Output contact capacity: 5 amp sealed relay output (AC 250V/10A relays 5 amp fuse).
Standard configuration:
A transmitter (with strap)
Receiver 1
The receiver comes with 1 m connection cable
Operation and Maintenance Manual 1
For single hook / Double-speed, double hook / Double-speed traffic, cranes and 19 contacts with the following industrial remote control.

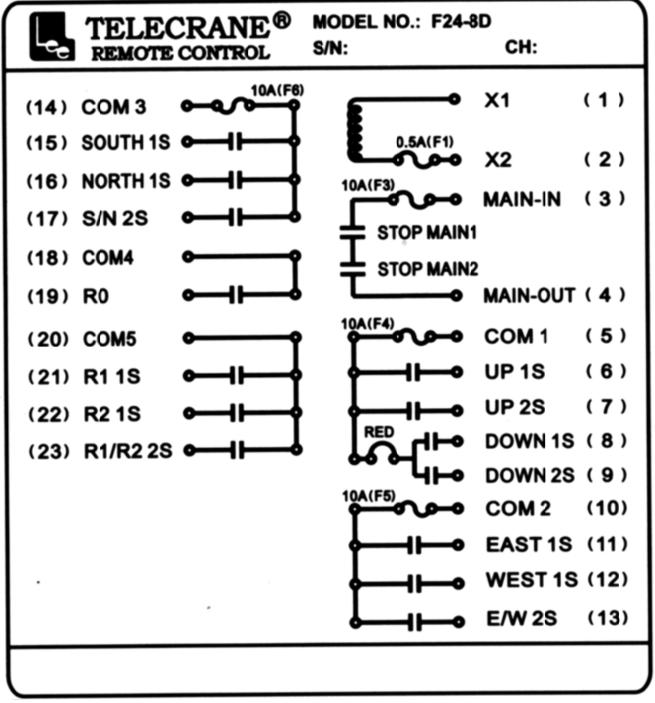

F24-8D wiring diagram
|
