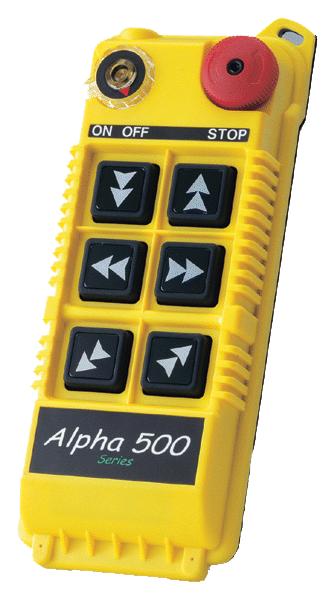

alpha560S Double-speed six-way remote control crane
Model: alpha560S
Features: six Double-speed button.
Specifications:
Transmitter: Size: 17.3 * 6.8 * 3.3 (CM) Weight: 240 grams (including the 5th two AA alkaline batteries);
Receiver: Size: 31 * 13.4 * 7.2 (CM) Weight: 1700 g (with cable);
Transmitter frequency: 301MHz;
Launch distance: ≥ 100 m;
Transmit Power: 1mW;
Adhesiveness: IP-66;
Power supply voltage: 3VDC;
Operating temperature: -20 鈩 ~ +75 鈩;
Receiver Frequency Control: receiver board or (PLL) phase lock loop;
Response time: 40ms;
Adhesiveness: IP-66;
Power supply voltage: 24V, 36V, 220V, 380V;
Operating temperature: -20 鈩 ~ +75 鈩;
Description:
1, the above models can be increased by 1-2 Single-speed spare key on the original transmitter. (Bells and lighting purposes only)
2, the key Chinese panel designed to be flexible, as per request made.
3, the receiver needs to do on-site FM frequency by increasing their convenience.
MD for wireless control crane hoist, single and double girder bridge crane and three other institutions Double-speed reversing device.
|
