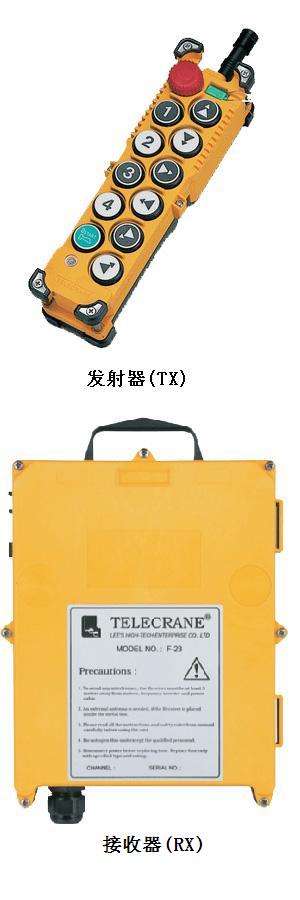

F23-D 10 key remote control crane Double-speed
Transmitter (handheld)
Size: 21.8x6.0x6.0 cm
Weight: about 350 grams
Receiver
Dimensions: 29x23x7 cm
Weight: 1900 g
12 keys, which is a two-stage button 11, a total stop.
Up to 23 control points.
With battery voltage warning device, in low voltage own circuit.
Safety key switch to prevent unauthorized use.
Improved models equipped with the two-stage button, is sealed with a full integration of Double-speed keys, and last longer, feel better. Total stop buttons with a self-locking red "mushroom head" button, and further emphasized the overall safety factor.
Up / down, east / west, north / south can be set as to whether mutual inhibition.
Boot the computer is set to boot by Jian, acceleration, flick jump, ordinary functions.
Unique dual motor mode: When the button is pressed a speed, a speed relay conduction; according to relay conduction velocity and speed relay is a trip (for dual motor crane's fast slow).
Control distance: up to 100 meters;
Security Code: 32 yuan (4.3 billion group);
Operating temperature: -35 鈩 to +80 鈩 (without regard to battery temperature);
Protection class: IP65;
Transmitter Power: DC 3V (two alkaline batteries can be used one month);
Receiver Power Supply: AC 380V/220V/48V choose, or DC 12V/24V;
Output contact capacity: 5 amp sealed relay output (AC 250V/10A relays 5 amp fuse).
Standard configuration:
A transmitter (with strap);
Receiver 1;
Receiver comes with waterproof connector (to be self-connection cable);
Operation and Maintenance Manual 1.
Applicable hook, Double-speed / multi-speed driving and 23 contacts with the following industrial remote control.
|
